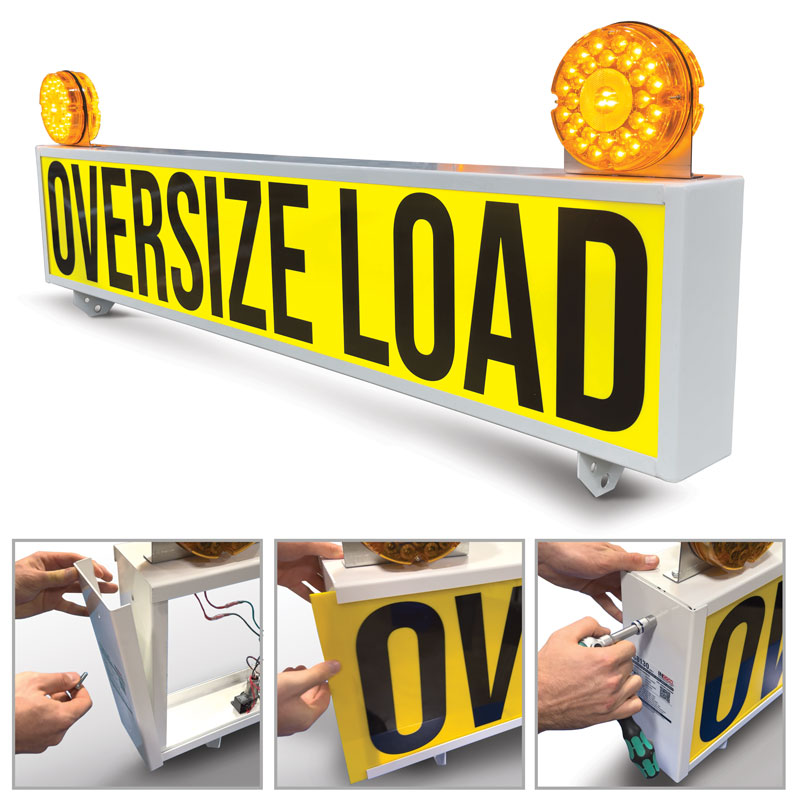

TS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) with TS8133 insert
TS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) lit up at night

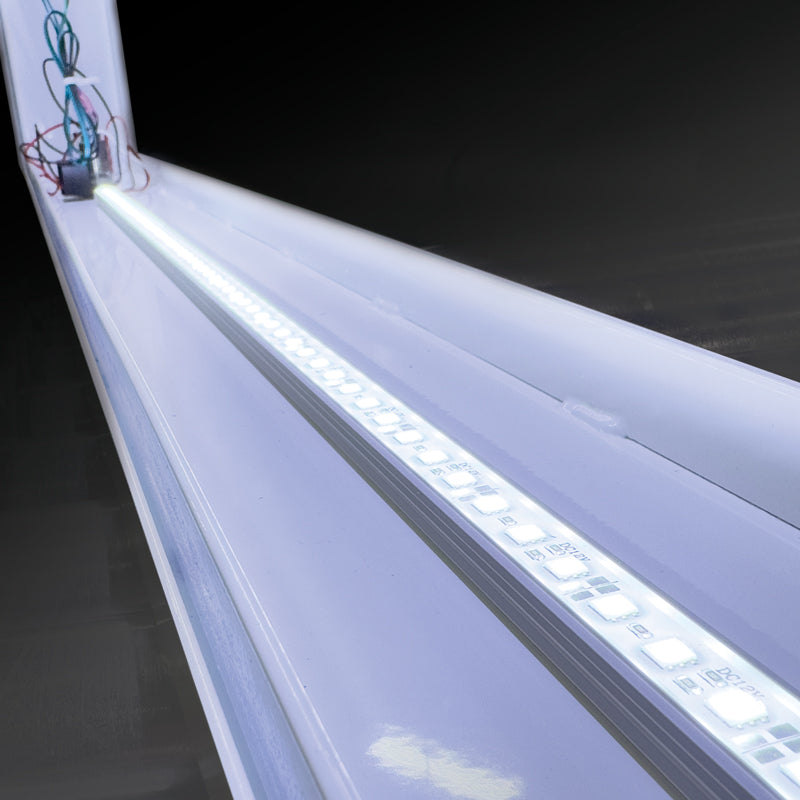

TS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) close up of light bar

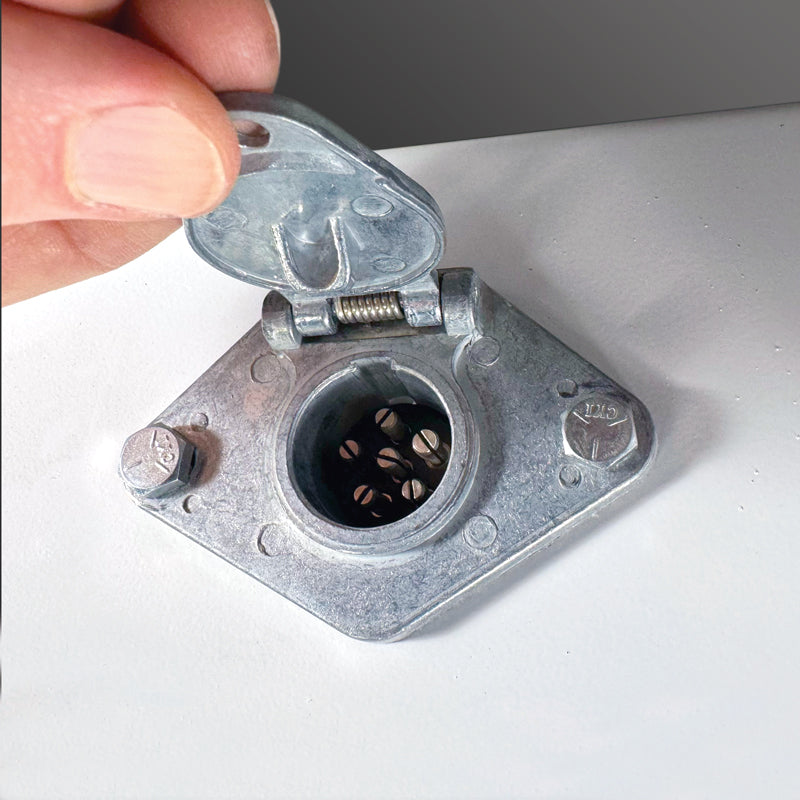

TS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) close up of electrical plug

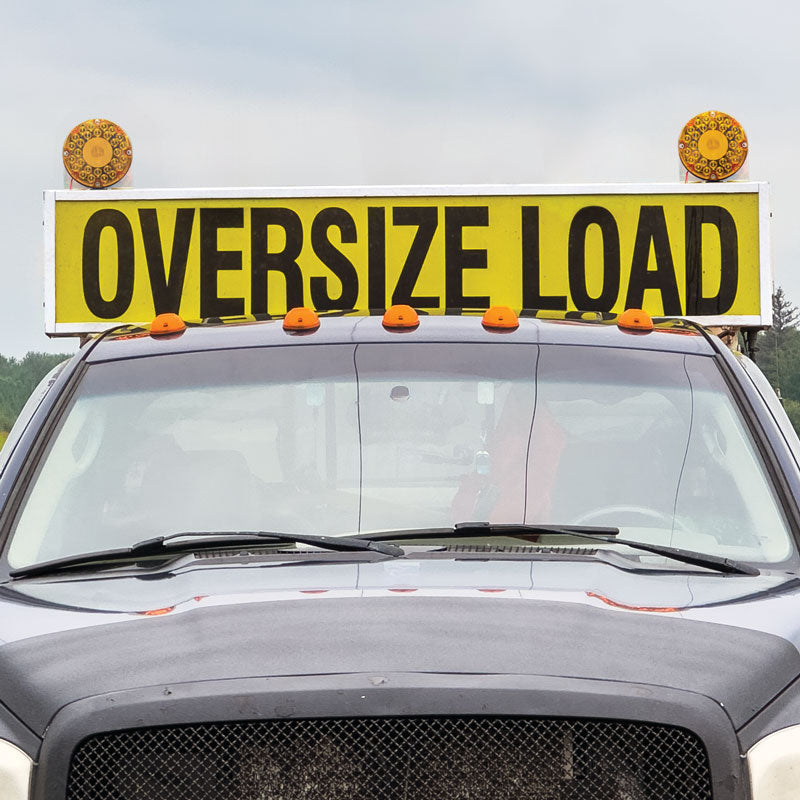

TS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) mounted on a truck

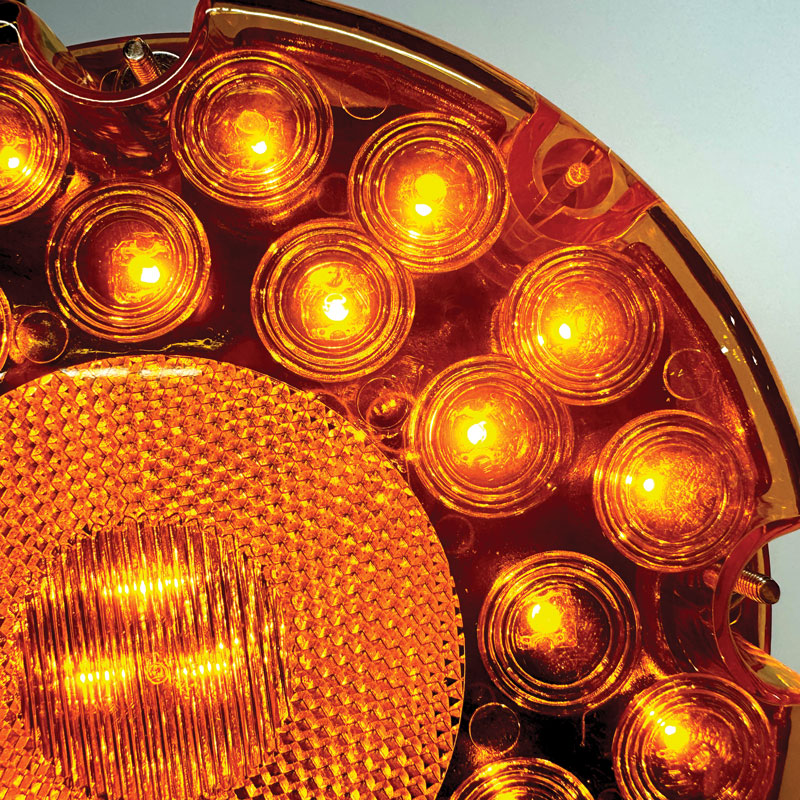

TS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) close up of orange flashing light
TS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in)TS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) with TS8133 insertTS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) lit up at nightTS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) close up of light barTS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) close up of electrical plugTS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) mounted on a truckTS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in) close up of orange flashing light

TS8130 Vehicle Mountable Illuminated Light-Up Pilot Car Sign Frame (72 in x 24 in x 5.5 in)

SKU: TS8130
Price:
$3,006.80 CAD

Premium illuminated pilot car sign frame built for high-visibility escort vehicle operations in the heavy haul industry.
This rugged, back-lit sign frame is engineered for maximum visibility, durability, and performance. Constructed from heavy-duty 14-gauge metal and finished in a protective white powder-coated paint, the frame supports two illuminated sign inserts (sold separately) and is equipped with bright white LED sign lighting plus four amber LED corner lights—two facing forward, two facing rear. Designed primarily for pilot car use, it can also be mounted on service or utility vehicles to deliver critical information or provide a clear visual warning when in transit or parked at the roadside.

The integrated lighting system is wired through a standard 6-way trailer plug and includes a unique feature that allows the front and rear light sets to be operated independently. The unit is powered by 12-volt electrical systems and requires simple assembly, including mounting of the flasher units. INCOM carries spare parts to help ensure compliance and keep your escort car operational when components need replacing.

Key Features:

  • Durable 14-gauge metal construction with white powder-coated finish
  • Bright white LED sign lighting and four amber LED corner lights
  • Lights wired through standard 6-way trailer plug for easy vehicle integration
  • Front and rear lighting control operated independently
  • Accommodates two sign inserts (13-1/2 inch x 71-1/2 inch, sold separately)
  • Primarily designed for pilot car use, also suitable for service and utility vehicles
  • Requires additional external support bracket (not included) for wind stability
  • Comparable to Barpek #BP708 illuminated sign

Technical Specifications:

  • Overall Dimensions: 72 inch W x 5 inch D x 24-1/2 inch H (including bracket and lights)
  • Sign Insert Size: 13-1/2 inch x 71-1/2 inch (2 inserts required)
  • Electrical System: 12-volt
  • Plug Type: 6-way trailer connector
  • Maximum Recommended Speed: 80 km/hr (50 mph)
  • Assembly Required: Yes (light mounting)

Important Notes:

  • Sign inserts are not included—must be purchased separately
  • Two inserts required per sign frame (one per side)
  • Support bracket not supplied and must be sourced separately for safe road use
