6-lock wall mount electrical lockout/tagout station with essential devices for electrical isolation and safety compliance.

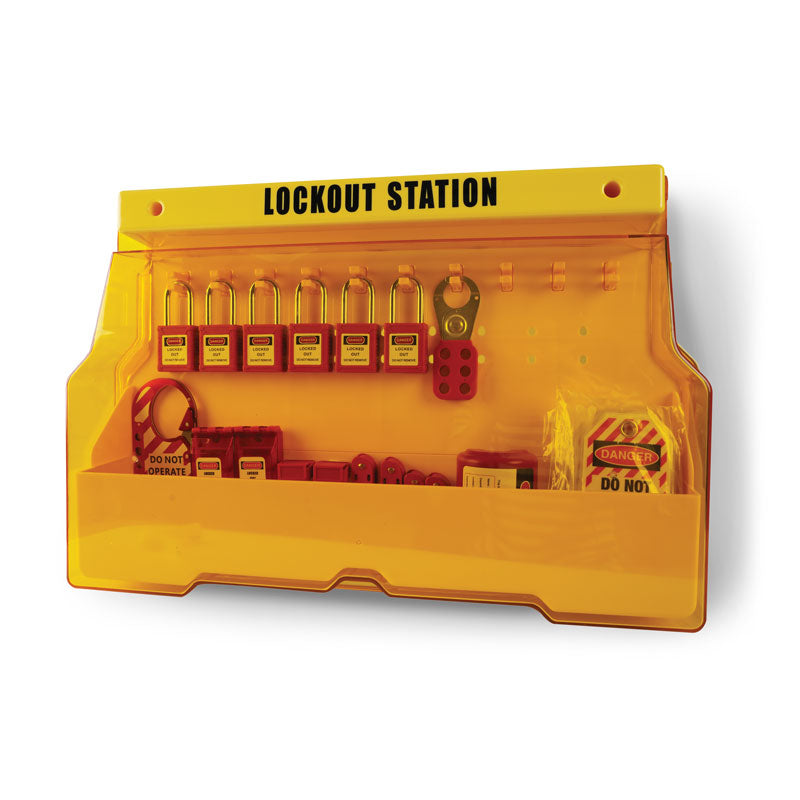

This expanded wall-mounted lockout station is built for electrical safety programs and comes pre-loaded with a complete selection of high-use devices. Constructed from resilient polycarbonate, the station withstands extreme heat and impacts far better than conventional plastic designs. It includes reinforced snap-on clips for organized storage of padlocks and hasps, along with a translucent lockable cover to keep contents protected and visible. Measuring 15.6 inch × 22.6 inch × 4.25 inch (396mm × 574mm × 108mm), this one-piece molded unit is ideal for fixed locations requiring immediate access to a full electrical LOTO setup.
Kit Contents:
- LT100KDRD (6): Red Steel LOTO Lockout/Tagout Padlocks

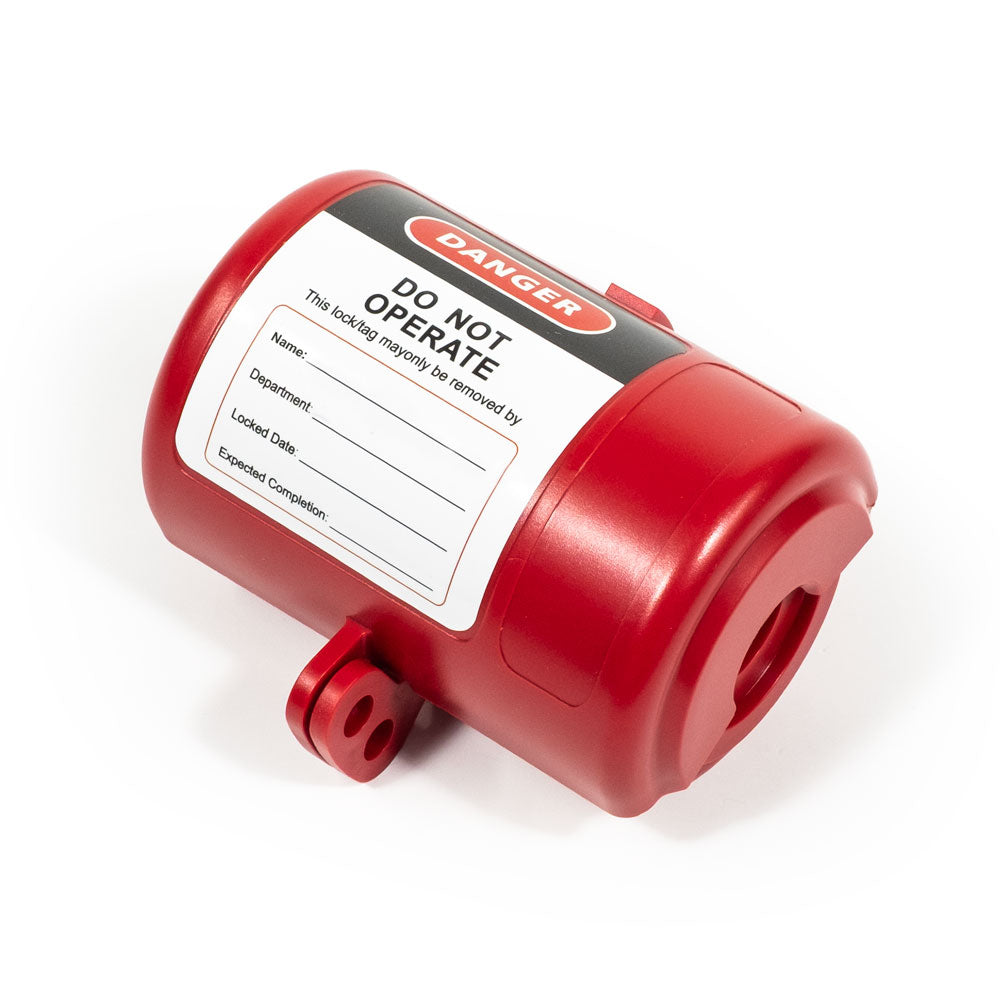

- (1): Electrical Plug Lockout (2.28 inch × 3.74 inch × 0.79 inch / 58mm × 95mm × 20mm)
- LT800HSP (1): DANGER Worded Snap-Lock Aluminum Lockout Hasp
- LT410BRK (4): Red Medium 120V and 240V Circuit Breaker Lockout/Tagout Units
- LT450BRK (2): Red Medium 120V and 240V Circuit Breaker Lockout/Tagout Units

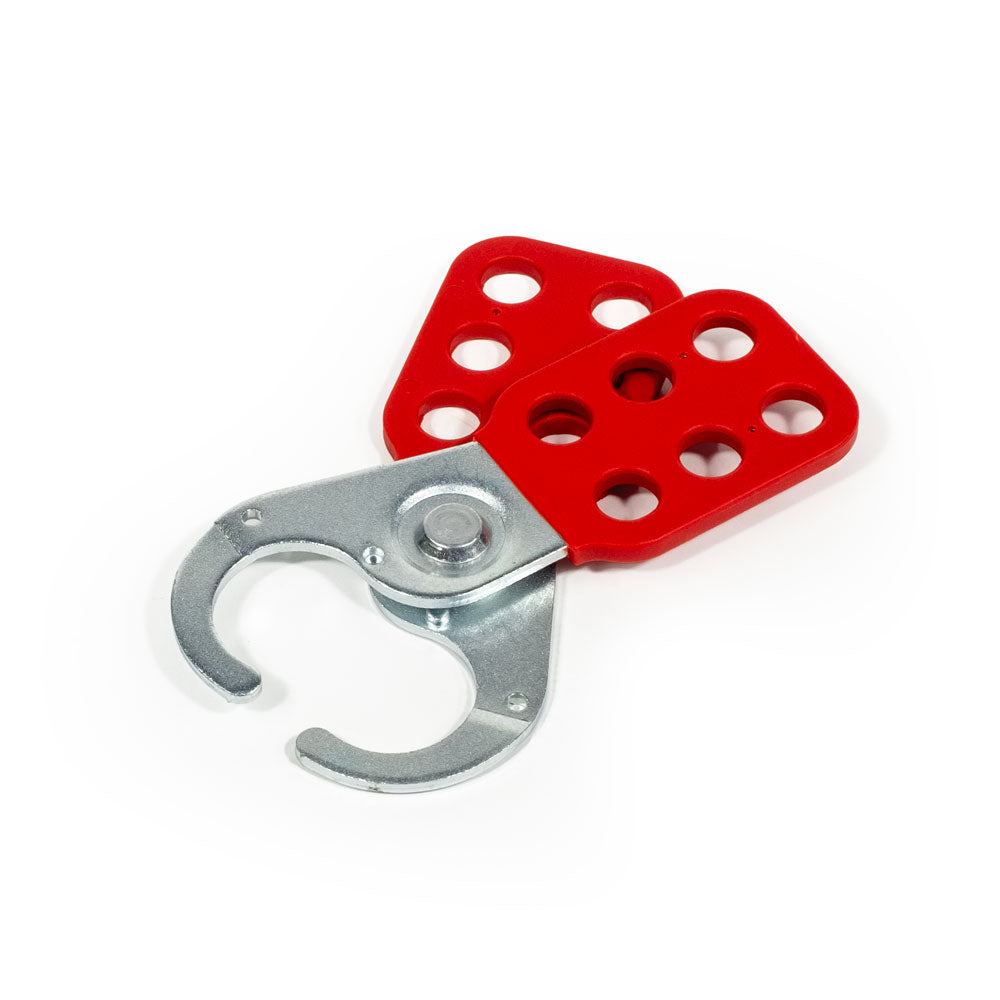

- LT110HSP (1): Coated Steel Lockout/Tagout Hasp (1 inch Jaw Clearance)
- (1): Universal Wall-type Switch Cover Lockout
- LT100TG (2 pkgs of 12): DANGER DO NOT OPERATE Lockout/Tagout Heavy Duty Laminated DuraPly™ Safety Tags (3.375 inch × 5.875 inch)
- Natural Cable Ties (24): For securing tags to lockout points
Key Features:
- Dimensions: 15.6 inch × 22.6 inch × 4.25 inch (396mm × 574mm × 108mm)
- Polycarbonate construction offers superior heat and impact resistance
- Lockable translucent cover protects equipment and maintains visibility
- Reinforced snap-on clips for secure storage and easy access
- One-piece molded body prevents loose or missing components
Recommended Applications:
- Electrical lockout programs in manufacturing and commercial facilities
- Wall-mounted energy control stations near high-use isolation points
- Shared LOTO access points for maintenance and service teams
Ideal For:
- Facility safety managers and electricians
- Maintenance teams handling electrical lockout procedures
- Workplaces following OSHA lockout/tagout compliance
